This panel light use PWM CCT dimming function and two LED strip with double color temperature to make it CCT dimmable. It adopts 12VDC power supply, which is stable and safe. CCT dimmable rank: 2200K-6500K, the max watt: 54W. (Totally 288pcs led, 144pcs pure white smd 3535 and 144pcs warm white smd 3535)

CCT adjustable Panel Light

LED panel lamp is a kind of top grade indoor lighting; the edge frame is made of 6063 aluminum by anodic oxidation. It adopts high brightness SMD 3535 and SMD 5050 as light source. The led light becomes an equal panel lighting effect after permeating the light guide plate with high transmission rate. The led panel lamp is mainly used for meeting room, negotiation room, hotels and other indoor lighting places, etc.

The Unique design of the led panel lamp makes the entire light get well and equal illumination, which can reduce the tired feeling of eyes. Considering from green light design, it has smooth outside appearance and low power consumption, and the materials is environment friendly. It does better than the Grille lamp light on lighting efficiency and brightness. It is going to replace the Grille light with source of T8 fluorescent tubes. The lifespan of led panel lamp is 10 times of the traditional tube lights, but the power consumption is only a half.

It has ultra thin design appearance and 4 edges connected with each other smoothly, which makes perfect effects.

Our panel light use PWM CCT dimming function and two LED strip with double color temperature to make it CCT dimmable.It adopts 12VDC power supply, which is stable and safe. CCT dimmable rank: 2200K-6500K, the max watt: 54W.(Totally 288pcs led, 144pcs pure white smd 3535 and 144pcs warm white smd 3535)

Picture:

External dimension(unit:mm):

connection diagram:

Instruction of CCT dimmable function:
CCT dimmable panel lamp is controlled by special CCT dimmable controller, the connecting way is as above picture.

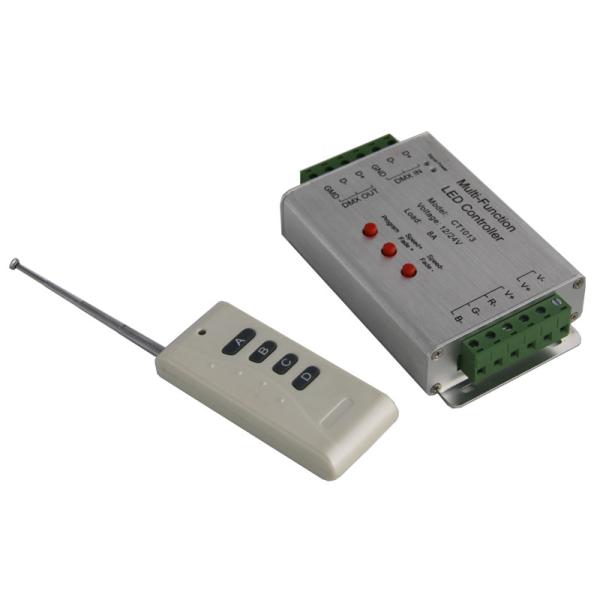

With the special CCT dim program of Multi-function RGB controller, the CCT of panel light can be dimmable. It can be controlled by remote or by manual. If by remote, then press button "A" then there are 9 kinds of CTT can be chose. If by manual, then press the button "+" or "-". Pressing "B"/"C" can change the CCT a little. It will save the CCT automatically. It will return to the CCT of the last time settled up when you restart the power. Other functions of the controller please refer to the introduction of the Multi-Function RGB controller.

LUX test

Attention:
1. Suggested working temperature is -20˚C ~ + 40˚C, or it would bring bad effects to lifespan of the lights once exceed the scope temperature.
2. Indoor use only.
3. Lamp installation and maintenance work must be operated by professionals.

Remarks:

This unit carries a risk of electric shock. Please do not Open or Tamper with the internal parts of this panel. This will void any warranty that the units may carry. Please make sure to turn off all power prior to installation, removal or inspection. This device is intended to be used indoors in dry locations. Any contact with moisture will likely cause a short in the panel light and will void any and all warranty.
